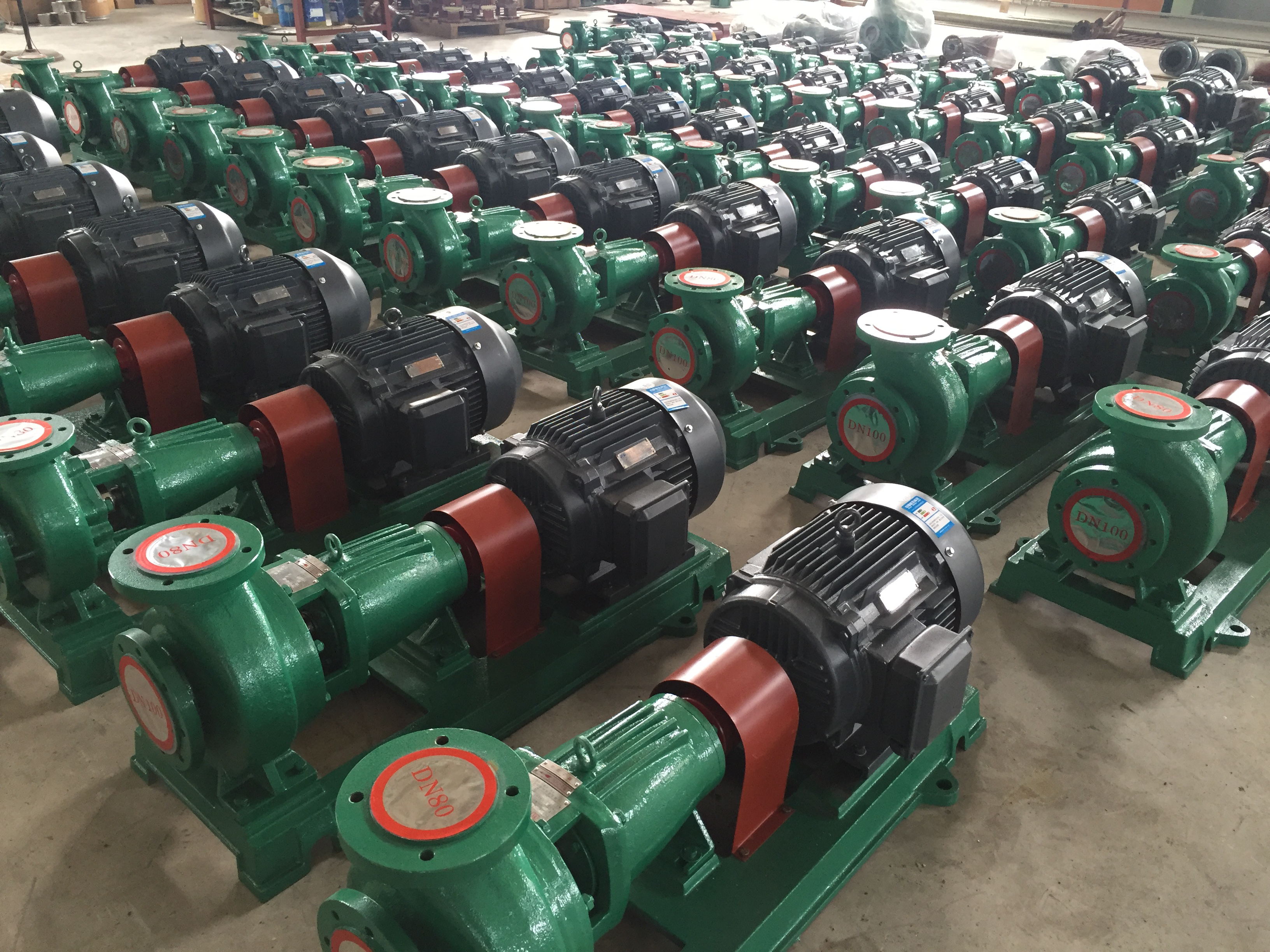

IHF-L氟塑料離心泵
產品分類:氟塑料耐腐蝕離心泵
流量范圍: 1.8T/h-400T/h，
揚程范圍: 5m-80m,
功率范圍: 0.55kw-110kw。
適用介質:任意濃度的酸、堿、鹽、強氧化劑等。特點:襯塑殼體，機封壽命長，結構緊湊，有二級和四級電機供選擇。針對不同工況特性，選擇不同的配置。
保用兩年的IHF系列氟塑料離心泵
耐腐耐磨
強耐腐 不開裂 不老化
高效率
雙端面水冷機封 抗干磨 高效率
穩定可靠
零件通配 維護方便 運行穩定
無滴無漏
經典款新 30年工況驗證
性能參數 | |||||||||
表一 配二級電機2900r/min | |||||||||
No. | Type | Flow | Head | EFF | NPSH | Aperture | Speed | Power | Weight |
序號 | 型號 | 流量m3/h | 揚程m | 效率% | 汽蝕余量m | 進口×出口mm | 轉速r/min | 電機功率kw | 整機質量kg |
1 | 1.7 | 20 | 28 | 3.0 | 25×20 | 2900 | 1.1 | 80 | |
2 | 1.7 | 32 | 29 | 3.0 | 25×20 | 2900 | 1.5 | 90 | |
3 | 3.6 | 20 | 38 | 3.0 | 32×25 | 2900 | 1.5 | 98 | |
4 | 3.6 | 32 | 39 | 3.0 | 32×25 | 2900 | 2.2 | 116 | |
5 | 6.3 | 20 | 38 | 3.0 | 40×25 | 2900 | 1.5 | 98 | |
6 | 6.3 | 32 | 31 | 3.0 | 40×25 | 2900 | 2.2 | 100 | |
7 | 6.3 | 50 | 23 | 3.0 | 40×25 | 2900 | 5.5 | 170 | |
8 | 6.3 | 80 | 24 | 3.0 | 40×32 | 2900 | 11 | 255 | |
9 | 12.5 | 20 | 52 | 3.2 | 50×32 | 2900 | 2.2 | 110 | |
10 | 12.5 | 32 | 47 | 3.2 | 50×32 | 2900 | 4 | 135 | |
11 | 12.5 | 50 | 40 | 3.2 | 50×32 | 2900 | 7.5 | 180 | |
12 | 12.5 | 80 | 34 | 3.0 | 50×32 | 2900 | 11 | 255 | |
13 | 25 | 20 | 61 | 3.5 | 65×50 | 2900 | 3 | 135 | |
14 | 25 | 32 | 56 | 3.5 | 65×50 | 2900 | 5.5 | 155 | |
15 | 25 | 50 | 51 | 3.5 | 65×40 | 2900 | 11 | 210 | |
16 | 25 | 80 | 48 | 3.5 | 65×40 | 2900 | 18.5 | 360 | |
17 | 50 | 20 | 65 | 4.0 | 80×65 | 2900 | 5.5 | 195 | |
18 | 50 | 32 | 64 | 4.0 | 80×65 | 2900 | 11 | 228 | |
19 | 50 | 50 | 63 | 4.0 | 80×50 | 2900 | 15 | 250 | |
20 | 50 | 80 | 56 | 4.5 | 80×50 | 2900 | 30 | 480 | |
21 | 100 | 20 | 65 | 4.5 | 100×65 | 2900 | 11 | 245 | |
22 | 100 | 32 | 70 | 3.0 | 100×65 | 2900 | 15 | 250 | |
23 | 100 | 50 | 68 | 3.0 | 100×65 | 2900 | 30 | 480 | |
24 | 100 | 80 | 65 | 3.0 | 100×65 | 2900 | 45 | 880 | |
25 | 160 | 32 | 68 | 3.0 | 125×100 | 2900 | 30 | 630 | |
26 | 200 | 50 | 67 | 3.0 | 125×100 | 2900 | 55 | 980 | |
27 | 200 | 80 | 62 | 3.0 | 125×100 | 2900 | 75 | 1100 | |
表二 配四級電機 1450r/min | |||||||||
No. | Type | Flow | Head | EFF | NPSH | Aperture | Speed | Power | Weight |
序號 | 型號 | 流量m3/h | 揚程m | 效率% | 汽蝕余量m | 進口×出口mm | 轉速r/min | 電機功率kw | 整機質量kg |
1 | 1.8 | 5 | 38 | 3.0 | 32×25 | 1450 | 0.55 | ||
2 | 1.8 | 8 | 39 | 3.0 | 32×25 | 1450 | 0.55 | ||
3 | 4 | 8 | 31 | 3.0 | 40×25 | 1450 | 0.55 | ||
4 | 4 | 12 | 23 | 3.0 | 40×25 | 1450 | 1.1 | ||
5 | 4 | 20 | 24 | 3.0 | 40×32 | 1450 | 1.5 | ||
6 | 6.3 | 5 | 52 | 3.2 | 50×32 | 1450 | 0.55 | ||
7 | 6.3 | 8 | 47 | 3.2 | 50×32 | 1450 | 0.55 | ||
8 | 6.3 | 12.5 | 40 | 3.2 | 50×32 | 1450 | 1.1 | ||
9 | 6.3 | 20 | 34 | 3.0 | 50×32 | 1450 | 1.5 | ||
10 | 12.5 | 5 | 61 | 3.5 | 65×50 | 1450 | 0.55 | ||
11 | 12.5 | 8 | 56 | 3.5 | 65×50 | 1450 | 1.1 | ||
12 | 12.5 | 12.5 | 51 | 3.5 | 65×40 | 1450 | 1.5 | ||
13 | 12.5 | 20 | 48 | 3.5 | 65×40 | 1450 | 3 | ||
14 | 25 | 5 | 65 | 3.0 | 80×65 | 1450 | 1.1 | ||
15 | 25 | 8 | 64 | 4.0 | 80×65 | 1450 | 1.5 | ||
16 | 25 | 12.5 | 63 | 4.0 | 80×50 | 1450 | 2.2 | ||
17 | 25 | 20 | 56 | 4.5 | 80×50 | 1450 | 3 | ||
18 | 50 | 5 | 65 | 4.5 | 100×80 | 1450 | 1.5 | ||
19 | 50 | 8 | 70 | 3.0 | 100×80 | 1450 | 3 | ||
20 | 50 | 12.5 | 68 | 3.0 | 100×65 | 1450 | 5.5 | ||
21 | 50 | 20 | 65 | 3.0 | 100×65 | 1450 | 7.5 | ||
22 | 80 | 8 | 64 | 3.0 | 125×100 | 1450 | 5.5 | ||
23 | 100 | 12.5 | 65 | 3.0 | 125×100 | 1450 | 11 | ||
24 | 100 | 20 | 68 | 3.0 | 125×100 | 1450 | 15 | ||
25 | 200 | 20 | 65 | 3.0 | 150×125 | 1450 | 22 | 520 | |
26 | 200 | 32 | 63 | 3.0 | 150×125 | 1450 | 45 | 730 | |
27 | 200 | 50 | 62 | 3.0 | 150×125 | 1450 | 75 | 1200 | |
28 | 400 | 20 | 63 | 3.0 | 200×150 | 1450 | 55 | 730 | |
29 | 400 | 32 | 64 | 3.0 | 200×150 | 1450 | 75 | 1200 | |
30 | 400 | 50 | 62 | 3.0 | 200×150 | 1450 | 110 | 1450 | |
